1. Convenient - Suitable for use at home, especially for the patient, disabled and those elders or women who stay at home alone.
2. Simple in use - User simply needs to pull out the loop on transmitter, then the receiver will automatically trigger the built-in & external sirens (if not set at nursing/silent mode) and dial the preset numbers for help.
3. Wide application - Can be connected with magnetic switches, PIR sensors and gas / smoke sensors etc, becoming a security or safety system or be used as a panic alarm or nursing caller by the additional button on transmitter.

1. Do not install the HL-850 under direct sunlight, high temperature, or high humidity.
2. To get the longest receiving distance, the receiver must not be installed on the electrical appliances or any metal surface.

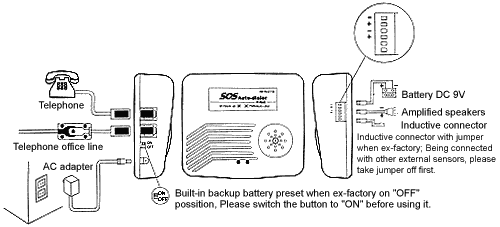

3. The telephone office line (out-line) have to connect with our HL-850 firstly then just connect with extension telephones.  Otherwise, the HL-850 can’t dial out for the emergency help if the extension telephones are using.
4. If the telephone is selectable for "TONE" or "PULSE" dialing, switch it to the "TONE" position.
5. The HL-850 is equipped with a built-in backup battery for use during electricity blackout (approx.7 hours in standby). For initial use, allow minimum 12 hours for battery to be fully charged.
6. User may connect an external siren to call for help from neighbors.

1. Power of receiver Input : AC 110/220V 60Hz / Output : DC 12V 500mA
2. Power of transmitter : 12V Alkaline battery
3. Backup battery : DC 9V (approx. 7 hours of use)
4. Range : Approx. 30 meters of straight line
5. Radio frequency : 315 MHz
6. Sound level of built-in siren : 90 dB

Operation	Description
Dial [*11]+[Phone No.]+[*]	Set-up of 1st auto-dialing number
Dial [*12]+[Phone No.]+[*]	Set-up of 2nd auto-dialing number
Dial [*13]+[Phone No.]+[*]	Set-up of 3rd auto-dialing number
Dial [*14]+[Phone No.]+[*]	Set-up of 4th auto-dialing number
Dial [*15]+[Phone No.]+[*]	Set-up of Auto-dialing to pager
Dial [*16]+[Number to be shown on the pager called above]+[*]	Set-up of leaving message (number) on the pager being called
Dial [*21*]"Beep" soundStart Recording	Recording message (max. 16 seconds)
Dial [*22*]play recorded message	Listening recorded message
Dial [*241]+[*]	Switch ON detection of external sensors
Dial [*242]+[*]	Switch OFF detection of external sensors (original setting when ex-factory)
Dial [*231]+[*]	Set at "Panic" mode (original setting when ex-factory)
Dial [*232]+[*]	Set at "Nursing/silent" mode
Dial [*11*]	Deactivating 1st phone No. ;For the others  deactivating, dial [*12*][*13*][*14*]

Example :

• Set-up of phone numbers
  1. Set up the 1^st phone No. (ex. 12345678)
     Pick up phoneDial [*11] + [12345678] + [*]hang up phone
  2. If extension number (ex. 123) is required, set as follows.
     Dial [*11] + [12345678] + [#....] + [123]+ [*] (finish)

  Note :
  • Each "#" gives 3-second waiting time, so in the above example there are total 6 seconds delay before the extension number is dialed out by Auto Dialer.
  • Maximum of 5 "#" can be set to give 15-second waiting time.
• Set-up of pager number
  1. Set up the pager number (ex. 0123456789)
     Pick up phone Dial[*15] + [0123456789] + [*]Hang up phone
  2. Set up the number to be shown on pager called above (ex. 87654321)
     Dial [*16]+ [87654321]+ [*] (finish)

     On the above example, the called pager will display "87654321---911 & 87654321--505".The numbers "911" & "505" are preset in factory to indicate this is an emergent call.

•
  1. Set-up the waiting time before message playing:
     (It can be set 1~9 digits; 1=2-seconds, 2=4-seconds, 3=6-second....etc.;default :2=4-second)
     Pick up phone Dial [*252*]Hang up phone
     On the above sample, the record message will be played after the dialing gets through 4-second later.
  2. Set-up message playing of times:
     Pick up phone dial[*263*] Hang up phone
     On the above sample, the recording message will be player 3 times for each dialing. (It can be set 1-3times, default : 2times)

Operation :

• To call for help in emergency :

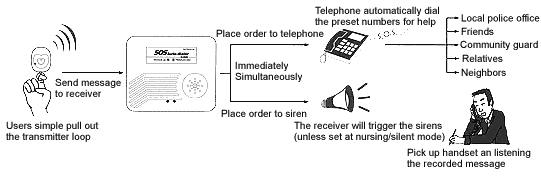

  Simply pull out the transmitter loop, then the receiver will trigger the sirens (present *231*) and automatically dial the preset numbers for help. The dialing process is as follows.

  1. Dial the preset 4 numbers in sequence.
  2. Re-dial these 4 numbers again.
  3. Dial the preset pager number once.

• If siren sound is not required, set the system in nursing/silent mode (present *232*,refer section B-2-b below). Then the receiver will dial silently.
• To pull the loop of transmitter in any condition , it must call out immediately.
• To deactivate, replace the transmitter loop and hold the transmitter button for one second. Then the siren sound and auto-dialing will be stopped immediately.
• Once the dialing gets through, the recorded message will be played and ended with 5 beep sounds. If anyone who receives the call presses the "#" button on his phone before end of 5 beep sounds, the playing will be stopped immediately and this number will not be re-dialed again in the step 2 above.
