STE-100NE
Mini Digital Frequency Counter
Key Specifications/Special Features:
  • Frequency readout range: 200 ~ 500MHZ
  • Size: 105 x 65 x 26mm
  • Voltage: DC 9V battery or transformer DC 9~12V
  • Pocket size, convenient to carry
  • Selectable memory frequency readout
  • Sensitivity: +/- 0.5MHZ
Main Export Markets:
  • Main Export Markets: Worldwide

Operation:
1.Plunge 9V battery with the attached snap or plunge DC 9V~12V adapter for power on.

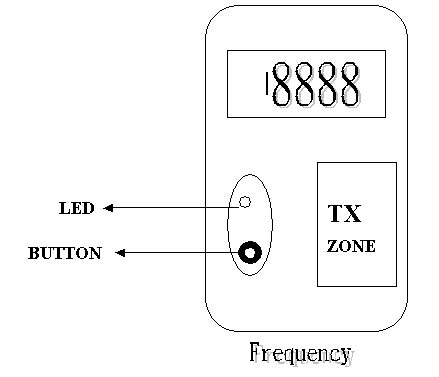

2.Put the original transmitter on the ¡¥TX ZONE¡¦ and press any button of the remote, the screen will be displayed the frequency in figure. Then put the duplicated remote on the ¡¥TX ZONE¡¦, use the tuner to tune VC for the frequency same as the original.
3.Button : Pressing the button to test the code status.
LED lights ON  : Upon into the code status testing. The beeper chirping means  the code completely.

LED lights OFF  : Upon into memorize the frequency.
