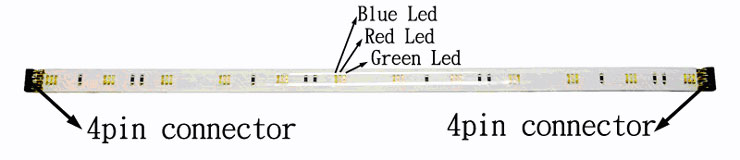

Flexible RGB Strip Connctible |
|
 |
|
- Size : 297mm x 10mm x 2mm
- Size with connector : 300mm x 10mm x 2mm
- PCB : Soft PCB FSB-CW-RGB White
- Current (Min) : 80mA (Red)
- Current (Max) : 2A (Red+Green+Blue)
- Operating temperature : 0
 - 50
- Storage temperature : -5 - 70
- Sotorage humidity : 0% - 80%
|
|
|
|
LED Specification |
Led type |
SMD3020 |
Led quantity |
Red x 12pcs, Green x 12pcs, Blue x 12pcs |
|
|
Red LED |
Luminous Intensity |
Min |
210mcd |
Max |
420mcd |
Viewing Angle |
120 degree |
|
Green LED |
Luminous Intensity |
Min |
600mcd |
Max |
800mcd |
Viewing Angle |
120 degree |
|
|
Blue LED |
Luminous Intensity |
Min |
210mcd |
Max |
420mcd |
Viewing Angle |
120 degree |
|
|
|
|
|
|
