Flexible LED Tube, Connectible, super thin, width = 5mm , white pcb |
 |
|
|

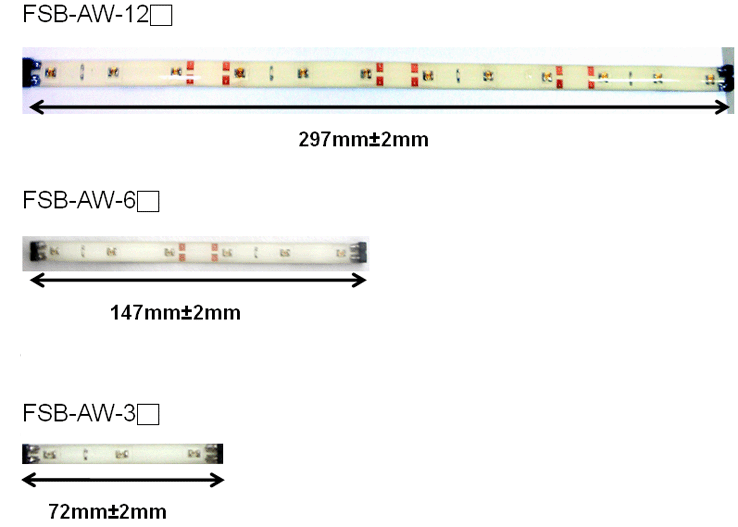

Model No. |
FSB-AW-12 □ |
FSB-AW-6 □ |
FSB-AW-3 □ |
( □ =Color: Red , Green , Blue , Yellow , White ) |
Size |
Length:297mm ± 2mm
Width: 5mm ± 0.1mm
Depth : 2mm ± 0.1mm |
Length: 147mm ± 2mm
Width: 5mm ± 0.1mm
Depth: 2mm ± 0.1mm |
Length: 72mm ± 2mm
Width: 5mm ± 0.1mm
Depth: 2mm ± 0.1mm |
weight |
4.1g |
2.45g |
1.3g |
Input Voltage |
DC 12V |
Max Current |
50mA |
25 mA |
12 mA |
LED type |
SMD3020 |
LED quantity |
12pcs |
6 pcs |
3 pcs |
LED beaming angle |
120 degree |
LED intensity |
Red |
Green |
Blue |
White |
Yellow |
210mcd |
550mcd |
210mcd |
400mcd |
210mcd |
|
LED spacing |
2.5 cm |
LED life |
20,000 hours |
LED Color |
Red,Green,Blue,Yellow,White |
Operating Temperature |
0  - 50 |
Storage Temperature |
-5 - 70 |
|
Storage humidity |
0% - 80% |
|
|
|
 |
 |
|
 |
|
 |
|
 |
Hilevel Technology Corp
6F NO.8,LANE 114 Hoping Rd Lu Chou City,TAIPEI HISEN,TAIWAN
TEL:+886-2-82822040 FAX:+886-2-82821373 |
|
