Instant Codes/Frequencies Learning Transmitter & SAW

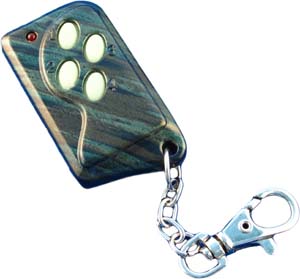

301H-5H Key Specifications/Special Features:
  • No frequency counter is needed. Do it yourself
  • Fast Code /Frequency Learning are proceeded at the same time.
  • Patent Right Registered fast learning, approx. 3 seconds per duplication.
  • Frequency Rang: 250MHz--450MHz
  • 4 channels available ( 4 different code with 4 different frequency).
  • Special Memory Circuit Design.
  • Universal type design-Compatibility 95% to all world wide transmitters.
  • Elegant Light shape with Big button Design.
  • weight : 31.5 gram
  • size : Length 62.8mm * width 33.5mm * thickness 13.8mm.
  • Outer case color : Black / various colors coating are available to make on request.
  • Button color : Light blue / Orange / Fluorescent ( other colors are also available to make on request).

1. Transmission :

  • Pressing any one channel button, LED lights on solid.

2. To activate Code / Frequency Learning Mode:

  • Press and hold buttons [1+2] together, count LED flashing
  • LED Flashes once then release - Transmission mode
  • LED Flashes twice then release - Code Learning mode

3. To Proceed Code / Frequency Learning -CODE LEARNING MODE

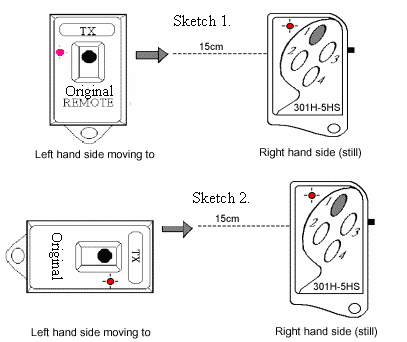

  • As sketch(1) ; Hold original (Old) transmitter at Left hand side and 301H-5HS at Right hand side
  1. Keep 15cm distance between Old TX (transmitter) and 301H-5HS
  2. Pressing button 1. of Old TX and 301H-5HS together at the same time
  3. 301H-5H flashes twice and goes off
  4. Now slowly move the Old TX to right hand side and stop when 301H-5HS LED is lighting on solid
  5. 3 seconds after, LED goes off, code/frequency learning is complete for button 1.
  6. button 2 or 3... please proceed the steps as a...e

4. Remark :

  • If code/frequency learning of 301H-5HS is not successful from the above proceeding, please change the position of Old TX as sketch (2) and starting again from steps a)...e)
  • If code/frequency learning of 301H-5HS is not successful from the above method, please change to press and hold buttons [1 + 4] together and counter LED flashing twice to enter code learning mode. Then start the above learning steps again.
  • Step b.) - If LED of 301H-5HS lights ON, 301H-5HS is not under Code/Frequency Learning mode, please proceed step [2] again.
  • A/B section switch:
    • Turn switch up at A. section - 4 channels are able to learn 4 different codes with 4 different frequencies
    • Turn switch down at B. section -4 channels are able to learn 4 different codes with frequency on 433.92Mhz.
301H-5HS-setp
Simply Operated Instruction
Step 1.
  • Press and hold buttons[1+2] together, count LED flashing.
  • LED Flashes twice then release
Step 2.
  1. Keep 15cm distance between Old TX and 301H-5HS
  2. Pressing button 1. of Old TX and 301H-5HS together at the same time
  3. 301H-5HS flashes twice and goes off
Step 3.
  1. Now slowly move the Old TX to right hand side and stop when 301H-5HS LED is lighting on solid
  2. 2 seconds after, LED goes off, code/frequency learning is complete for button 1
  3. button 2 or 3... please proceed the steps as a...e
